Arches

5632 - 5633

Lines

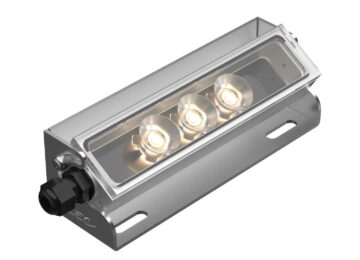

Compact, precise, and discreet, ARCHES is the linear spotlight designed to sublimate architectural details with elegance. Specially designed for installation on windowsills, cornices, or architectural lines, it provides even, grazing lighting that subtly enhances volumes. For facade installations, a selection of optics enables the angle of opening to be adapted to cover great heights or to obtain an even coating, even in a grazing position. Available in 3 or 6 LED versions, with a choice of powder-coated finishes, ARCHES can be integrated into any lighting project.

Get an IES file Data sheet EU Declaration of Conformity

References available

5632
5633

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP67

IK rating: IK10 20 J

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Cable length: 100 cm

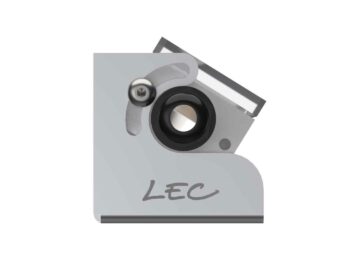

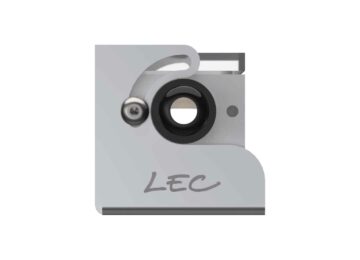

Features: 1-axis adjustable : -10° à 90°
Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K)

Type of LED: Power LED

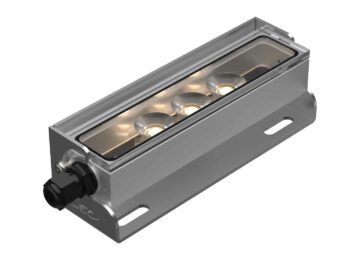

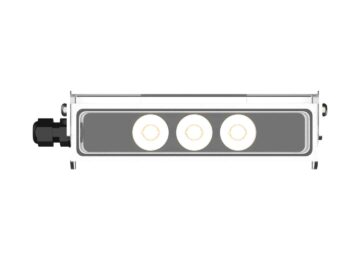

Number of LED: 3

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in
the “Photometric Specifications” document

Reference flux: 627 lm

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP67

IK rating: IK10 20 J

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Cable length: 100 cm

Features: 1-axis adjustable : -10° à 90°
Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K)

Type of LED: Power LED

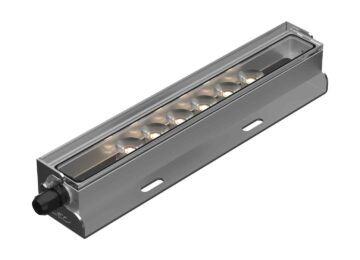

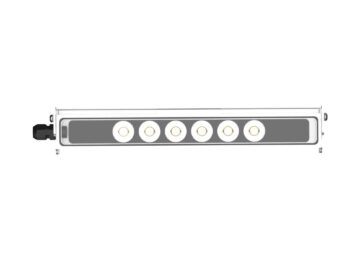

Number of LED: 6

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in
the “Photometric Specifications” document
