Clem

5651 - 5652 - 5653 - 5654

Lines

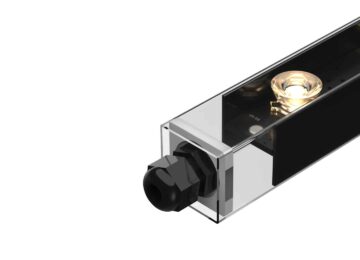

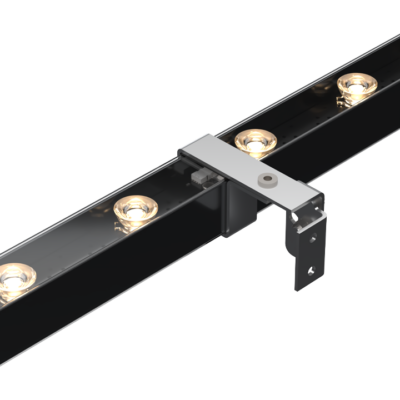

CLEM is a versatile light bar, available in four lengths, ideal for elegantly emphasizing architectural lines or visually structuring a space. Installed individually or in a continuous line, it creates clean, regular lighting perspectives. Thanks to its extensive asymmetrical optics, CLEM provides uniform illumination, even when installed flush, ensuring subtle highlights. A range of mounting accessories, both fixed and swivel-mounted, enables integration to suit every project. Designed for a wide range of uses, CLEM can be used for both direct and indirect lighting in public spaces, on covered walkways or as a decorative highlight. A four-color version is also available for customized lighting atmospheres.

Get an IES file Data sheet EU Declaration of Conformity

References available

5651
5652
5653
5654

Luminaire's body

Materials: UV-resistant polycarbonate

IP rating: IP67

IK rating: IK06

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 1.1 kg

Cable length: 100 cm

Features

Length: 196,5 cm

Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 24

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document

Reference flux: 5 016 lm

Luminaire's body

Materials: UV-resistant polycarbonate

IP rating: IP67

IK rating: IK06

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.8 kg

Cable length: 100 cm

Features

Length: 148,5 cm

Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 18

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document

Reference flux: 3 762 lm

Luminaire's body

Materials: UV-resistant polycarbonate

IP rating: IP67

IK rating: IK06

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.55 kg

Cable length: 100 cm

Features

Length: 100,5 cm

Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 12

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document

Reference flux: 2 508 lm

Luminaire's body

Materials: UV-resistant polycarbonate

IP rating: IP67

IK rating: IK06

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.3 kg

Cable length: 100 cm

Features

Length: 52,5 cm

Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 6

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document
