Palais Royal

1843 - 1843 SF

Extras

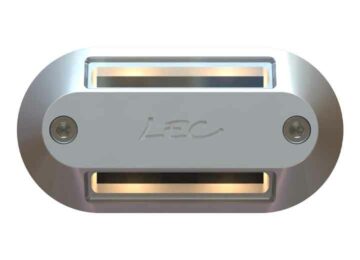

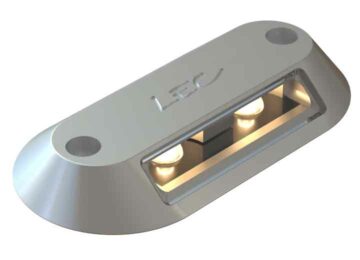

PALAIS ROYAL is a compact LED spotlight, designed to be surface-mounted on the floor and provide extensive, lowangled illumination. Its unobtrusive, effective light helps to structure space while guaranteeing optimum visibility for pedestrian and cyclist paths and traffic areas. Thanks to its single or dual beam direction, it is perfectly suited to the configuration of public spaces, footbridges, pontoons, or to highlighting low-height facades. Easy to install, it can be embedded directly on the ground (except 230V) or on a flush-mounting plate, depending on project requirements. Versatile, reliable, and unobtrusive, PALAIS ROYAL blends harmoniously into the space while delivering optimum lighting performance.

Get an IES file Data sheet EU Declaration of Conformity

References available

1843
1843 SF

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP68

IK rating: IK10 60 J

Integrated power supply

24 V dc + PWM (class III)

230 V ac – non dimmable (class II)

Remote power supply in distant box

230 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.61 kg

Cable length: 100 cm

Features: Two light emission directions
Parallel beams
Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K)

Type of LED: Power LED

Number of LED: 4

Optics available: Narrow beam (C2)

Reference flux: 419 lm

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP68

IK rating: IK10 40 J

Integrated power supply

25 V dc + PWM (class III)

230 V ac – non dimmable (class II)

Remote power supply in distant box

231 V ac -> 24 V dc + PWM

Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.715 kg

Cable length: 100 cm

Features: One light emission directions
Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K)

Type of LED: Power LED

Number of LED: 2

Optics available: Narrow beam (C2)

Reference flux: 210 lm

Options

Different LED color on each side

Only for 1843

Accessories

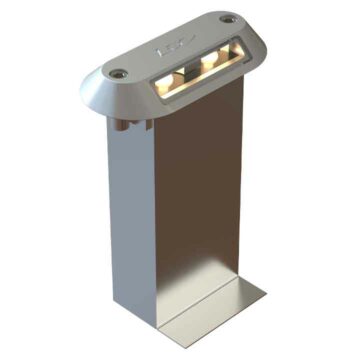

Recessed mounting plate
