Chateauneuf

1570

Points

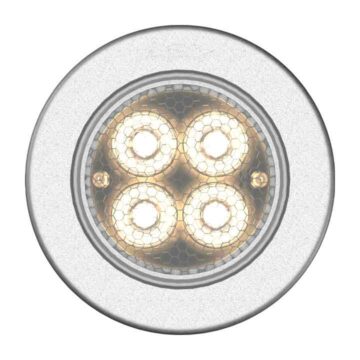

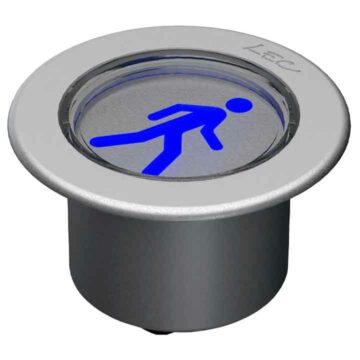

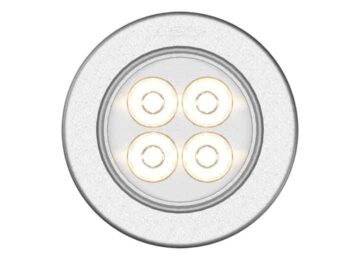

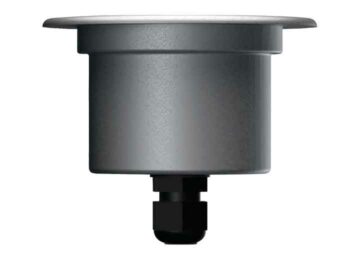

CHATEAUNEUF is a recessed luminaire ideal for lighting or marking urban spaces. The mid-range version of the CHATEAUNEUF range features a carefully designed frame for perfect integration, whatever the surface. Whether wallmounted to secure cycle paths, pedestrian walkways, and staircases, or to highlight architectural details or street furniture, CHATEAUNEUF adapts perfectly to any environment. Designed in colorless anodized machined aluminum and fitted with an anti-UV and scratch-resistant polycarbonate window, it combines sturdiness and discretion. Available in a three-color version for light marking and a four-color version for lighting, it can be used to modulate the lighting ambience to suit different uses or to subtly emphasize volumes. Versatile and reliable, CHATEAUNEUF is a sober, durable lighting solution designed to enhance public spaces while ensuring user safety.

Get an IES file Data sheet EU Declaration of Conformity

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP68

IK rating: IK10 60 J

Integrated power supply: 24 V dc + PWM (class III)

Remote power supply via cable: 230 V ac – non dimmable (class II)

Remote power supply in distant box: 230 V ac -> 24 V dc + PWM
Control possible via: 0–10 V, DMX, DALI, potentiometers

Weight: 0.4 kg

Cable length: 100 cm

Features: Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED / Light marking LED

Number of LED: 4 / 36

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric
Specifications” document
