Passy

5781 - 5782

Lines

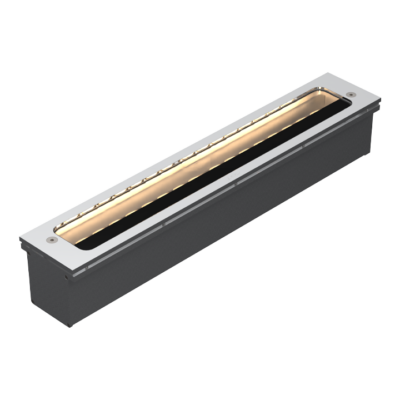

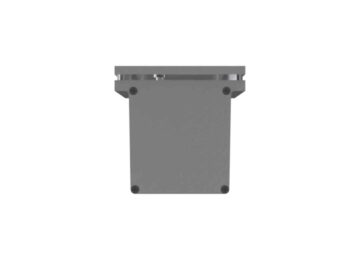

With its discreet profile in anodized aluminum, the PASSY line is designed to enhance outdoor spaces while guaranteeing precise, even lighting. Available in a range of lengths and configurations, this linear luminaire offers a solution perfectly suited to demanding projects, whether revealing the beauty of a monument or structuring an urban landscape. Thanks to its advanced optics, it ensures optimum light distribution, perfectly sized according to requirements. Totally robust, its IP68 waterproof optical compartment and IK10 shock resistance make it a reliable and durable choice, even in the most exposed environments. In addition, the LED plate can be easily oriented without having to open the product, guaranteeing optimized, stress-free installation. PASSY features an intelligent flush-mounting system and ergonomic wiring options, facilitating fast, efficient installation. Elegant and high-performance, it’s an ideal solution for projects where aesthetics, efficiency and durability are essential.

Get an IES file Data sheet EU Declaration of Conformity

References available

5781
5782

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP68

IK rating: IK10 60 J

Integrated power supply: 230 V ac – non dimmable, 230 V ac + 0/10 V, 230 V ac + DALI, 230 V + DMX (class II)

Weight: 6 kg

Cable length: 100 cm

Features: Length: 100 cm
Adjustable orientation without disassembly
Transparent flat window

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 32

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document

Reference flux: 6 688 lm

Luminaire's body

Materials: Clear anodized machined aluminium

IP rating: IP68

IK rating: IK10 60 J

Integrated power supply: 230 V ac – non dimmable, 230 V ac + 0/10 V, 230 V ac + DALI, 230 V + DMX (class II)

Weight: 3.3 kg

Cable length: 53 cm

Features: Length: 53 cm

Optical unit

Color temperature: 2 200 K (A), 2 700 K (F), 3 000 K (E), 4 000 K (N), 6 000 K (W), Red (R), Amber (O), Green (V), Blue (L), Royal Blue (K), Four-color (TW in RGBW)

Type of LED: Power LED

Number of LED: 16

Optics available: 10°, 20°, 36°, 52°, 77°, 120°, 130 x 25° (L1), 116 x 44° (L2), 100 x 12° (L3), 40 x 10° (L4), 130 x 25° D50° (L5), 116 x 44° D36° (L6), 100 x 20° (L7). See details in the “Photometric Specifications” document
